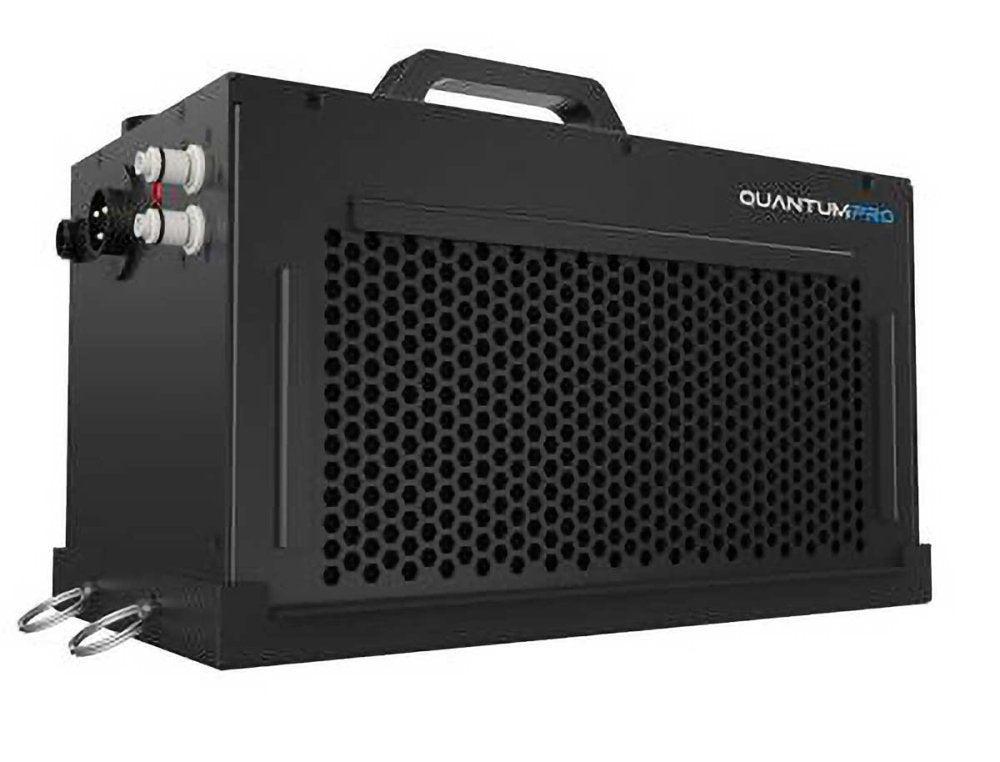

Chillout Systems Quantum Cooler Pro

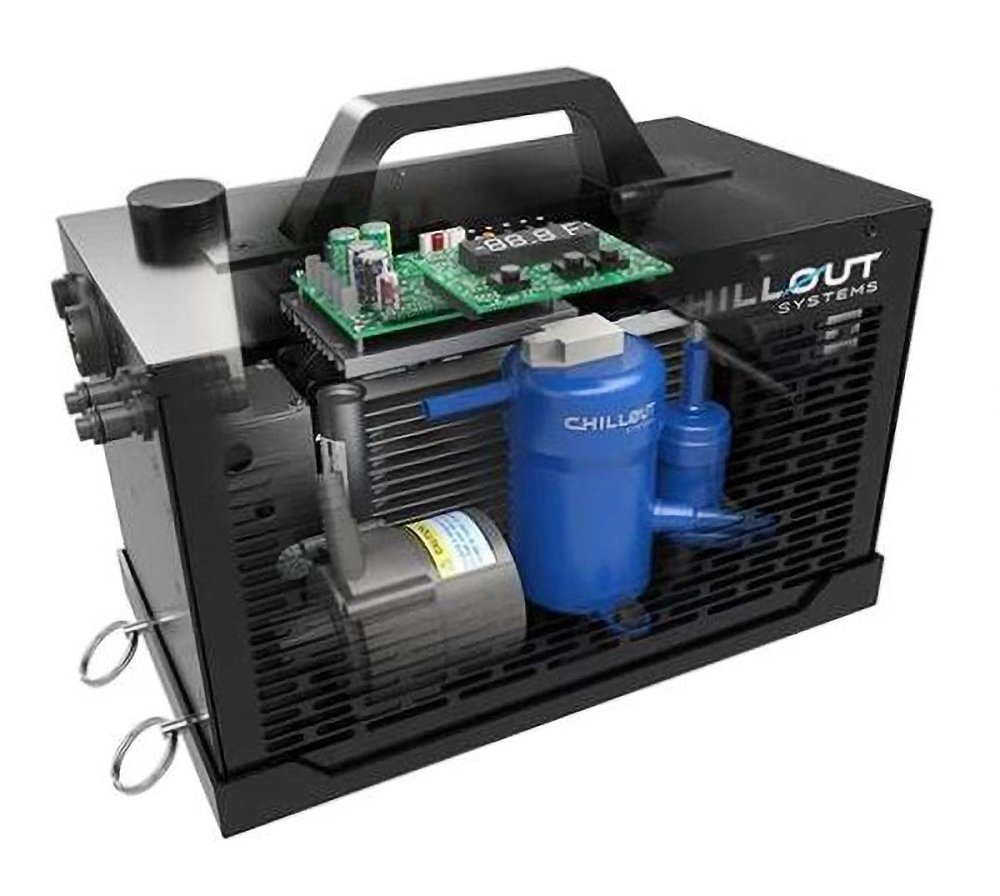

The Chillout Systems Quantum Cooler series of coolers are the most powerful portable iceless cooling systems ever designed for auto-racing. Requiring no ice, this driver cooling system is completely maintenance-free, running solely off the strength of a rotary micro-compressor that is as powerful as other compressors 5x its size.

Rated at 20 liters per minute/16 psi, the Quantum Pro system is capable of chilling to under 35º F. Max amp draw is rated at 18-22 amps, depending on installation and environmental conditions. System contains less than 1.75 oz. of freon sealed within the rotary micro-compressor system. The Quantum Pro offers many different temperature settings that support varying performance conditions. Dual 220-cfm fans help decrease amp draw, and a bright, easy-to-read color digital display offers valuable information and data.

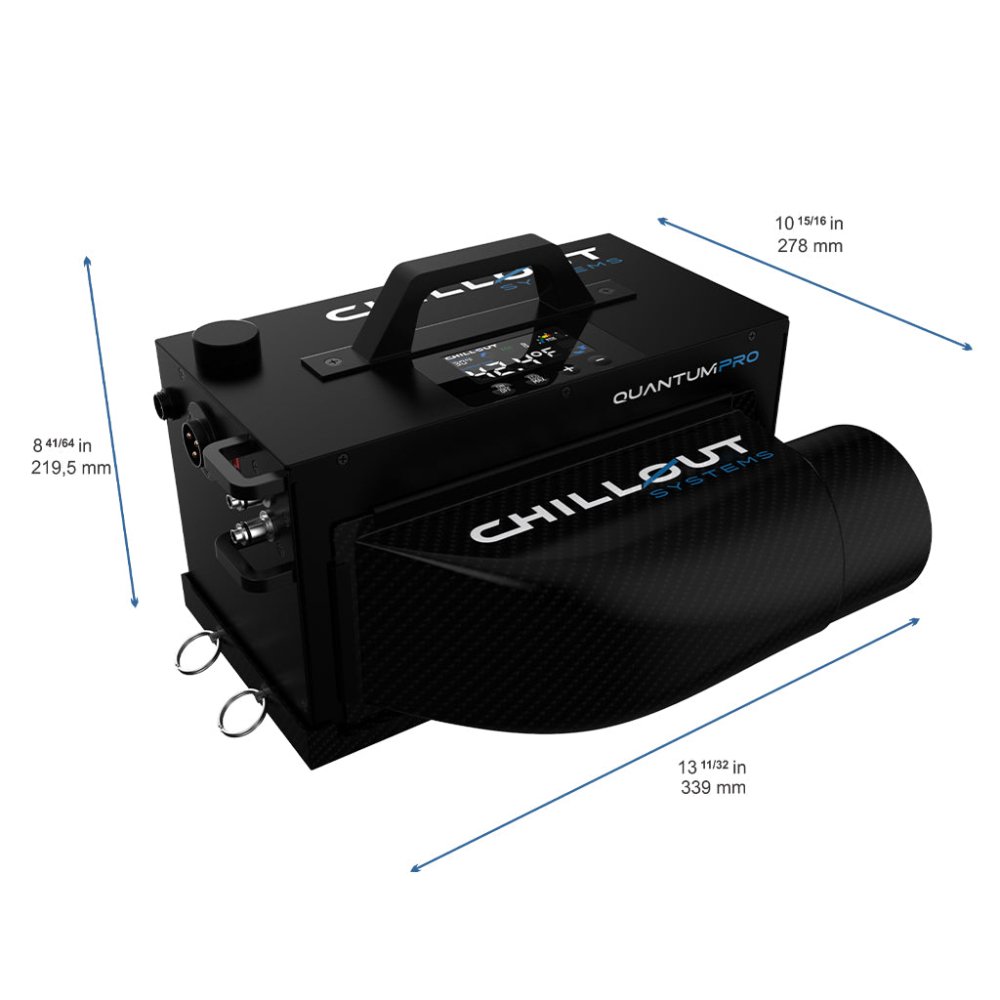

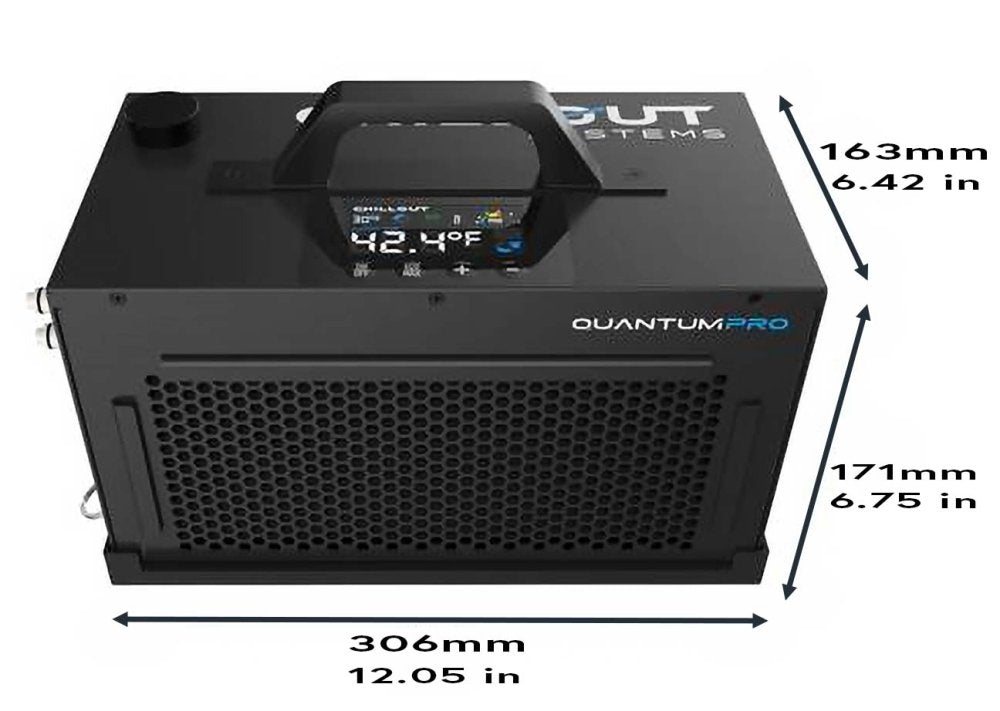

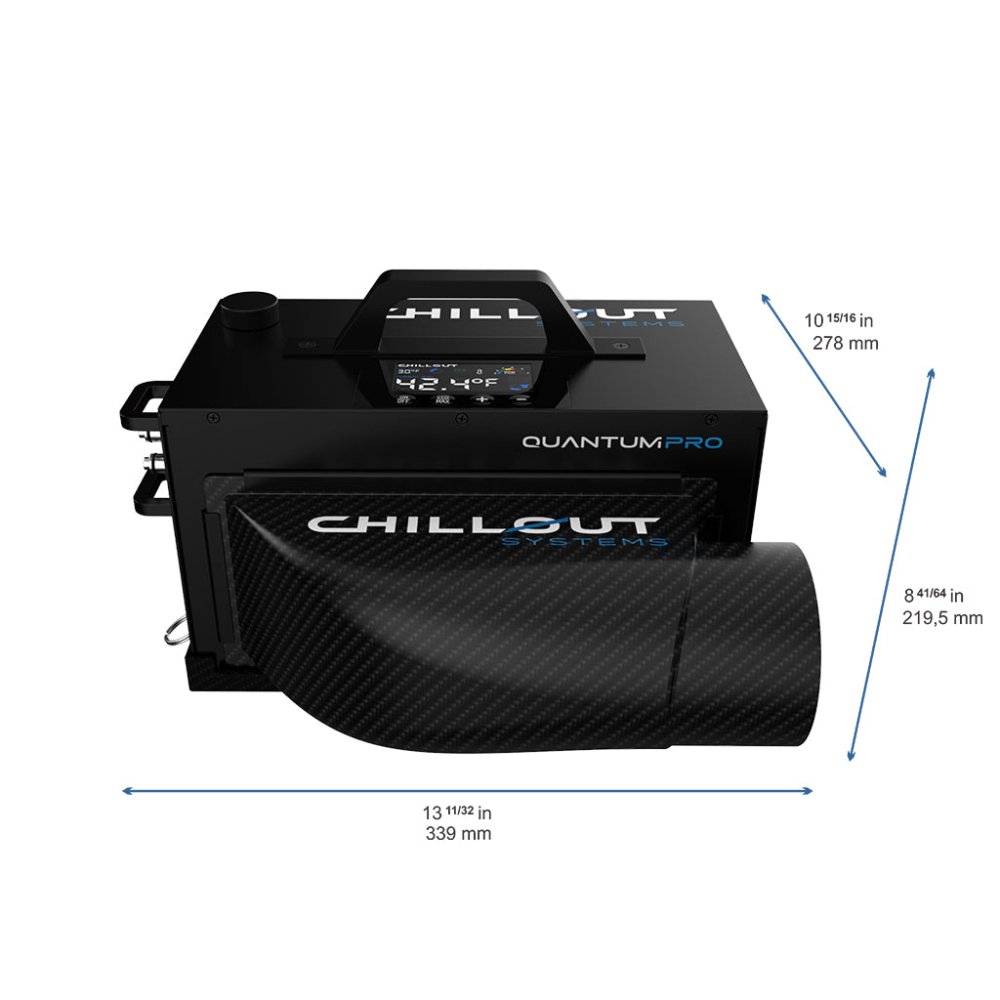

Weighing in at 10.5 lbs, the Quantum Pro is portable and hot-swappable so you can quickly move it from mounting location to mounting location within seconds. A dash-mountable digital control display is available for cooler installations out of the driver's reach.

When planning installation, please consider the interior temperature of your vehicle under racing conditions. Keep in mind that ducting is necessary for many installations to achieve the best results. Using four-inch ducting is highly recommended and eliminates the need for a supplemental blower. Three-inch ducting is restrictive and requires the use of a high performance (250+ cfm) blower.

Quantum Pro vs Quantum V3:

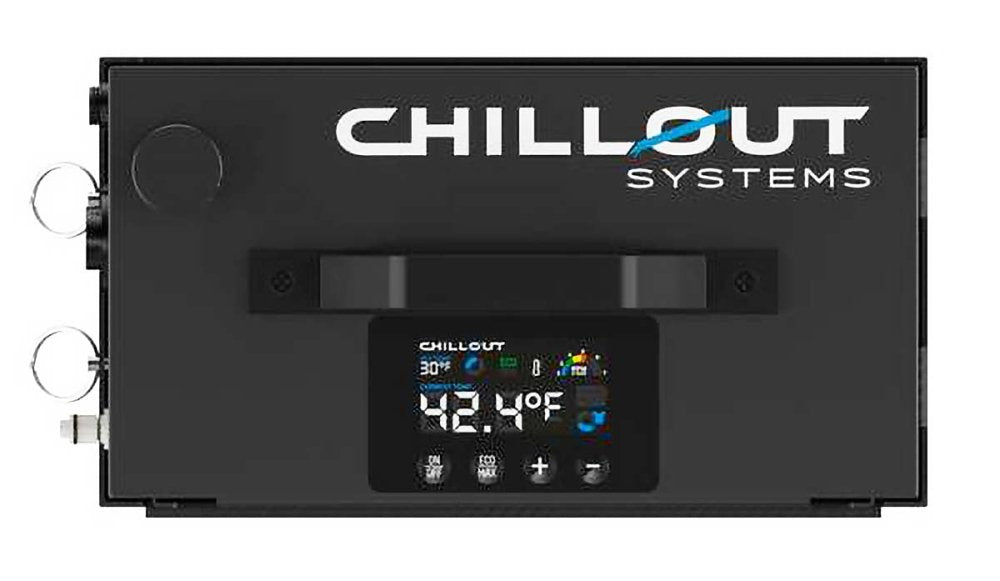

  • Full-color LCD display with extensive data
  • Internal bypass valve eliminates the need for a coolant loop. System continues to cool the reservoir even when the shirt is disconnected.
  • Dual 4-inch, 220 cfm brushless fans
  • 50% larger condenser vs V3
  • 25% larger evaporator vs V3
  • LiPo / Li-ion battery support outlet at 24 volts. Supports parallel power at 12 and 24 volts simultaneously, no downtime between power sources.
  • Coolant reservoir has double the capacity at 13 oz.
  • Eco mode maintains system under 18 amps at all times.
  • Carbon fiber mounting plate further reduces weight and heat-soak.
  • Two flow sensors for monitoring both sides of the flow valves for easy troubleshooting and maintenance.
  • IP65 rated.

In the Box:

  • Quantum Cooler Pro
  • Carbon Fiber Mounting Plate

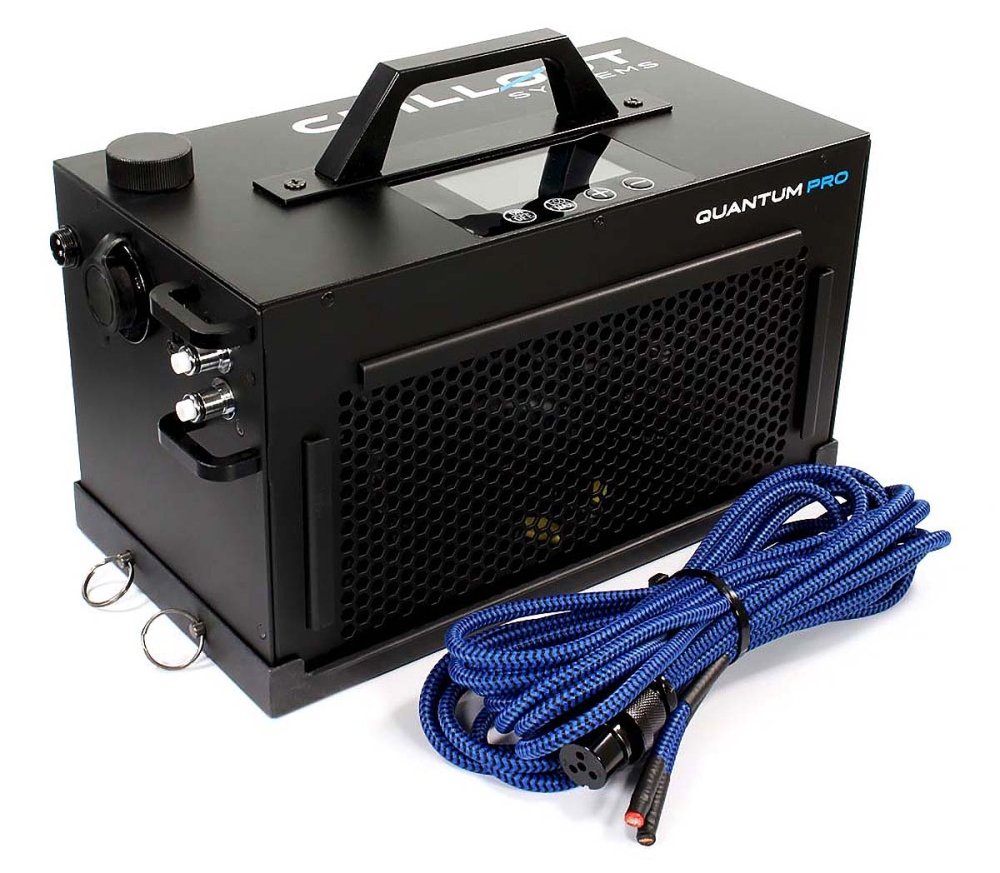

  • Wiring Harness
  • Locking Ball Pins
  • Priming Tube

Cross Compatibility:

The Chillout Systems Quantum Cooler Pro is compatible with other brands of cooling shirts that use 1/4" tubing. You will need to purchase the Chillout Systems Dual Prong Adapter and Insulated Hose in order to connect to non-Chillout shirts.
